Series 9 Power Protection

  • Home
  • Series 9 Power Protection

Protect against all 9 basic power problems:

  • Power failures, Power sags and Power surges
  • Under and Overvoltage
  • Switching transient, Line noise, Frequency variation, Harmonic distortion.
  • he global benchmark product for the whole industry
  • Single or three-phase, online units 24/7 availability
  • Designed for protection of :data centers, server farms, communications and broadcasting industrial controls, manufacturing machinery, process equipment, transportation and security

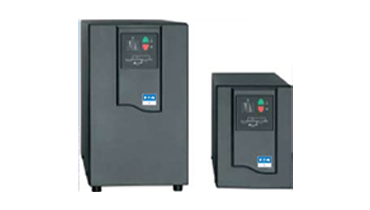

Eaton DX

Rating: 1.0 kVA to 10KVA
Voltage: 220V +2%
Frequency: 50Hz

Application

IT application, all industrial applications
Flexible true double-conversion online UPS

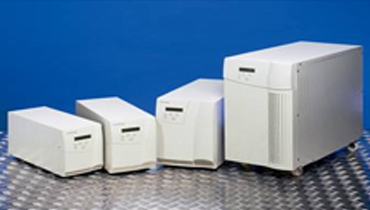

Powerware 9120

Rating: 700-3000 VA
Output power Factor :0.9
Frequency: 50/60 Hz

Application

Critical IT application, all industrial applications

Flexible true double-conversion online UPS for any critical application

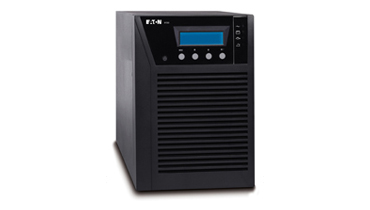

Powerware 9130

Rating: 1000-6000 VA
Voltage: 208-240 V
Frequency: 50/60 Hz
Configuration: Rack Mount
Cuts energy usage and costs with >95% efficiency rating in high efficiency mode.
Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries.

Application

Critical IT application where

Flexible true double-conversion online UPS for any critical application

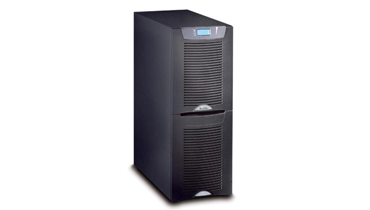

Powerware 9155

Rating: 8-10 kVA (1:1), 8-15 kVA (3:1)
Input power factor : 0.99
Output Voltage: 220-240 V
Frequency: 50/60 Hz
Output Power Factor :0.9
Highest availability and reliability is achieved with HotSync paralleling technology that enables paralleling up to four 9155 UPSs for additional capacity or redundancy

Application

Critical application with modern IT server/computer load ,Hot Sync

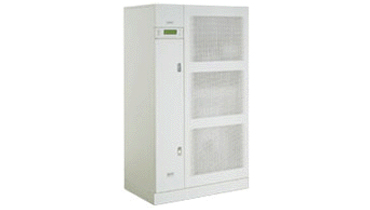

Powerware 9340

Rating: 80-130 kVA
Voltage: 380-415 V
Frequency: 50/60 Hz

Application

Critical 24/7 power protection in IT, Telecom and Industrial applications

Hot Sync

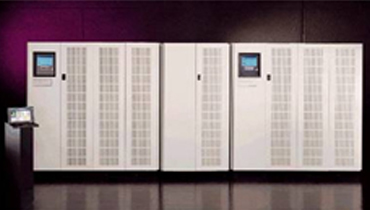

Powerware 9315

Rating: 300-625 kVA
Voltage: 380-415 V
Frequency: 50/60 Hz

Application

Data centers, telecom and Industrial applications

Hot Sync

Powerware 9355

Rating: 8-15 kVA (3:3)
Voltage: 220-240 V
Frequency: 50/60 Hz

Application

Critical application with modern IT server/computer load

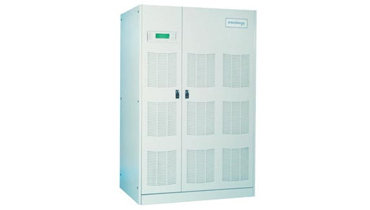

Powerware 9370

Rating:200-500 kVA.
6- & 12-pulse rectifier , Hot Sync parallelling.
Digital IGBT inverter , Output PF 0.8 rating.
Graphical LCD panel.

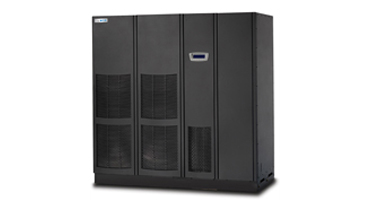

Powerware 9395

Power Rating : 225-1100 kVA
Voltage : 400V
Frequency : 50/60 Hz
Strong power performance with active power factor control (PFC) provides unbeatable 0,99 input power factor and minimizes ITHD. This greatly reduces interference with other upstream equipment and enhances 9395 UPS compatibility with generators.
Reliable backup with scalable runtimes are enhanced with Advanced Battery Management (ABM™) and UPS battery self test options that extent battery lifetime and help detect any defects in batteries already in earlier stage.

Powerware 9390

Rating:40 - 160 kVA:
Active front-end rectifier , Hot Sync parallelling , ABM battery management
Full digital control , Output PF 0.9 rating
Graphical LCD panel , Smallest footprint in the market
Leading sustainability is achieved with innovative UPS design and its high efficiency rating that significantly lower the total cost of ownership. Small footprint and lightweight reduce costs of transportation and installation.
Strong power performance with active power factor control (PFC) provides unbeatable 0,99 input power factor and minimizes ITHD. This greatly reduces interference with other upstream equipment and enhances 9390 UPS compatibility with generators
